Soffit Pot Lights for West GTA & Peel Region Homes

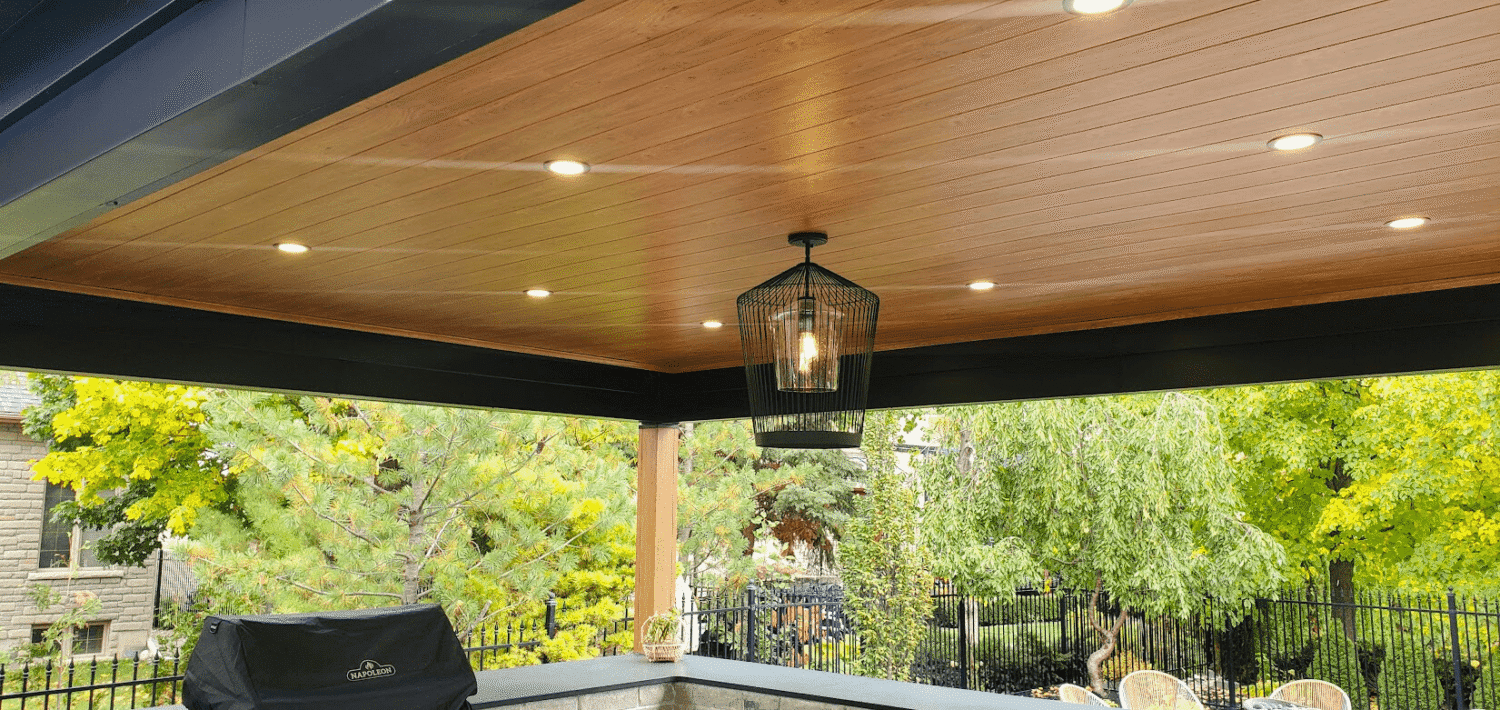

Kleinburg project: Sagiper soffit ceiling with pot lights and black aluminum cladding

Project in Kleinburg — Sagiper soffit ceiling with pot lights, black aluminum cladding

Serving Mississauga, Brampton, Caledon, Oakville, Milton, Etobicoke and nearby. A well-planned soffit pot light layout makes your home feel warm, safe and high-end the moment the sun goes down—without bulky fixtures or harsh glare. Below, we cover spacing, colour temperature, fixture specs, Ontario code basics, and how our team coordinates a clean installation with a Licensed Electrical Contractor.

Why this upgrade works so well in our neighbourhoods

In West GTA & Peel, evening drive-bys and dusk showings are common. A gentle wash of light across brick, stone or siding helps your home read as cared-for and secure—great for daily life and for resale photos. With early winter sunsets here, good lighting isn’t cosmetic; it’s everyday comfort and safety.

What is a soffit pot light (and why choose it)?

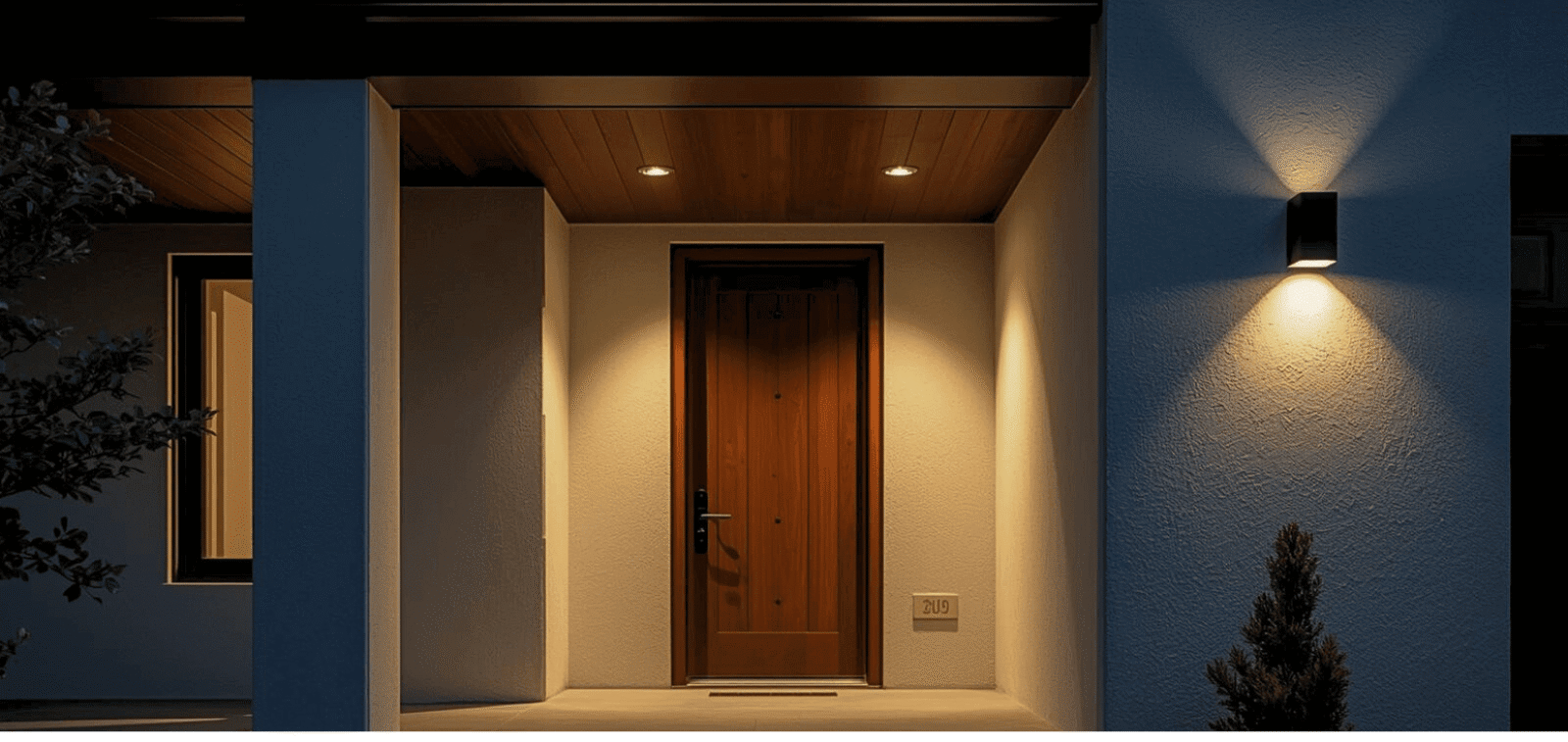

Warm 3000K soffit pot lights aligned across porch ceiling

It’s a low-profile downlight set into the soffit (the underside of your roof overhang). Because the light source is tucked under the eave, wiring is hidden and you get a soft “wash” down the façade instead of a glaring hotspot. Choose fixtures listed for damp or wet locations, depending on exposure. Under-eave areas are typically considered damp; zones hit by wind-driven rain need wet rating.

Design basics: spacing, colour & brightness

Spacing: For an even wash, start around 4–6 ft between fixtures on typical eaves; taller elevations or higher-output lights can stretch toward 6–8 ft. Tighten spacing near the entry, house numbers and feature columns for extra punch.

Colour temperature: 2700–3000K (warm white) flatters brick and wood, feels welcoming, and is easier on neighbours and night skies than cool, blue-rich light.

Lumens & trims: Many homeowners like ~600–900 lumens per fixture for a soft façade wash (use a dimmer if needed). Baffle or regressed trims reduce glare where soffits are low over walkways.

Fixture checklist (Canada-ready)

Listing: CSA/ULc, and damp or wet as exposure requires.
LED efficiency: ENERGY STAR LEDs can use far less energy than incandescent and last longer—ideal for hard-to-reach soffits.
Size/profile: Ultra-thin 3–4″ “pancake” kits fit tight soffits; match trim colour to soffit for a seamless look.
Controls: Add a timer, photocell or smart switch so the lights “just work.”

Installation with Maxima Aluminum (Peel & West GTA)

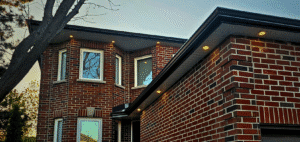

Maxima Aluminum coordinates soffit lighting with Licensed Electrical Contractors

We coordinate with Licensed Electrical Contractors (LECs) and handle the exterior cladding details for a clean, code-compliant result. In Ontario, most electrical work requires filing a Notification (permit) with the Electrical Safety Authority before work starts; using an LEC is the easiest way to handle wiring and inspections.

Best experience: integrate lighting when we install or replace soffit—fewer cuts, factory-clean finish.
Retrofit: where feasible, we cut and reinforce existing panels, then our LEC completes wiring and controls.
Smart options: dusk-to-dawn photocells or smart switches keep usage efficient and hands-off.

Common mistakes to avoid

Over-lighting: too many fixtures or very cool colour (4000–5000K) looks sterile; stick to warm 2700–3000K and aim trims to reduce glare.
Random spacing: uneven gaps create hot spots and dark bands—keep a consistent rhythm (see 4–6 ft guideline).
Wrong rating: indoor-only trims outdoors = premature failure; use damp/wet-rated as needed.

Example: two-storey semi in Oakville

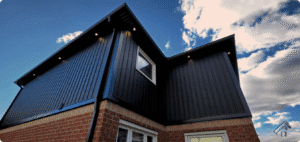

Oakville semi: black Board and Batten siding with soffit pot lights and new eavestrough

Oakville semi-detached with new insulation, black Board and Batten vinyl siding, aluminum cladding trim, soffit with 4″ LED units (3000K warm white, baffle trims, photocell + timer), 5-inch eavestrough with Alu-Rex DoublePro™.

Maintenance for our climate

Seasonal wipe-down of lenses and a quick gasket check after freeze–thaw.
Trim branches that block the wash or create striped shadows.
Test timers/photocells each spring and fall as daylight hours change.

FAQs

How far apart should soffit pot lights be?

Start around 4–6 ft on typical eaves and adjust for height/output. Tighten near the entry or address for emphasis.

What colour temperature looks best here?

Warm 2700–3000K suits most West GTA homes, flatters brick/stone, and is friendlier to neighbours and night skies.

Do I need damp- or wet-rated fixtures?

Under-eave spots are typically “damp”; areas exposed to wind-driven rain need “wet.” We’ll specify the correct listing.

Can homeowners do the wiring in Ontario?

Ontario allows homeowner electrical work, but most jobs require an ESA notification before starting and an inspection—many residents prefer hiring a Licensed Electrical Contractor. We coordinate this for you.

Will this help resale?

Yes—lighting supports curb appeal and better evening photos. Combine with fresh eavestroughs, new soffit & fascia, and updated siding for the biggest lift.

Do LEDs really save much?

Yes—quality LEDs use less energy and last far longer than incandescent, ideal for hard-to-access soffits.

Ready to light it right?

Maxima Aluminum serves the West GTA & Peel Region—Mississauga, Brampton, Caledon, Oakville, Milton, Etobicoke and nearby. We handle soffit/fascia and coordinate licensed electrical—one streamlined project, done to code.

Request a free estimate or call 416-677-8191.
